INNOVATIVE FINE CHEMICAL
We are proud of GW Tech, the challenger of
fine chemical industry.
- PRODUCT
- Roket Propellant Additive
Rocket Propellant Additives
A bonding agent is a substance used to improve the mechanical properties of a composites by increasing the adhesion between polyurethane propellant particle matrix, which is effective with Ammonium Perchlorate in butadiene binders.

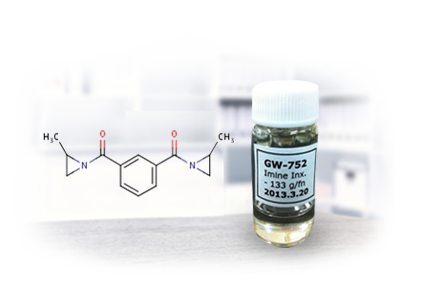

GW-752 (Bonding Agent)
| Chemical Name | 1,1-Isophthaloylbis(2-Methylaziridine) |
|---|---|
| Generic Name | GW-752 ® / HX-752 |
| CAS# | 7652-64-4 |
| Imine index | 130 ~ 135 g / fn |
| Percent volatile | < 2.5 % |
| Apperance | Clear to pale amber liquid |
| Viscosity Approximately 7600 centipoise [@ 20 °C] | |

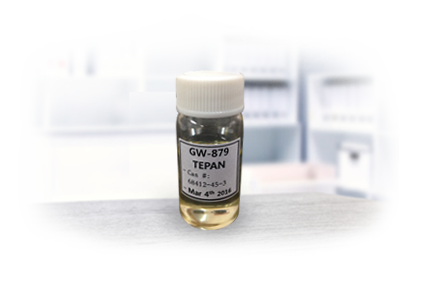

GW-879 (Bonding Agent)
| Chemical Name | Reaction Product of Tetraethylenepentamine and Acrylonitrile |
|---|---|
| Generic Name | GW-879 ® / TEPAN |
| Moisture | 0.85max wt% |
| Viscosity | 500 ~ 1000 첸 [@ 25°C] |
| Secondary amine | 9.0 ~ 12.0 meq/g |
| Total amine | 11.0 ~ 15.0 meq/g |
| Tertiary amine | 2.0 ~ 3.0 meq/g |

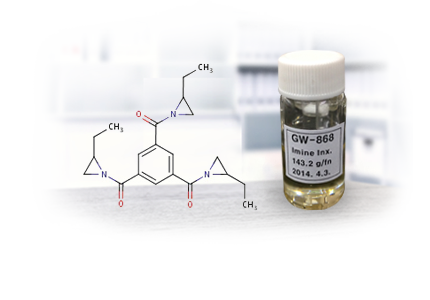

GW-868 (Crosslinking Agent)
GW-868 works as a crosslinker for polyurethane polymers and also functions as a liner adhesion enhancement agent with propellants containing Ammonium Perchlorate.
| Chemical Name | 1,1’,1’-(1,3,5-Benzene tricarbonyl) tris2-butylene imine |
|---|---|
| Generic Name | GW-868® / HX-868 |
| CAS# | 7722-73-8 |
| Imine index | 135 ~ 150 g/fn |
| Percent volatile | < 3.0 % |
| Apperance | Pale amber liquid |
| Viscosity | 60000 – 150000 centipoise at 23 degrees Celsius |

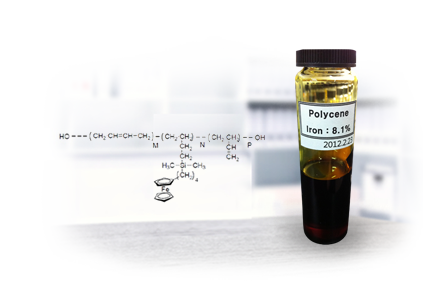

Polycene (Burning Rate Accelerator)
Polycene is burning rate catalyst which leads to a higher burning rate with low pressure exponent without migration, vaporization and oxidation during missile manufacturing and aging. Polycene unlike ferrocene derivatives doesn't have potential risk of the dangers. Also, Polycene allows it to be fully miscible with standard HTPB (Hydroxy Terminated Polybutadiene).
| Chemical Name | Polycene® / Butacene 800 |
|---|---|
| Generic Name | Organic silicon ferrocene derivatives bonded to HTPB |
| CAS# | 125856-62-4 |
| Iron Content | 7.5~8.5% |
| Percent volatile | < 0.1 % |
| Hydroxyl index, meq/g | 0.32 ±0.05 |
| Viscosity | ≤ 1000 poise at 25 degrees Celsius |

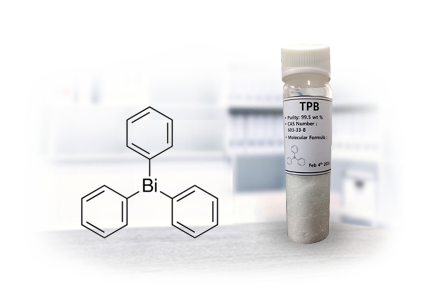

TPB (Solidifying Catalyst)
Triphenyl bismuth(TPB) has been used as the solidifying catalyst for butyl hydroxyl propellant of high combustion velocity. TPB can lower solidifying temperature and optimize solidifying time for pot life, as well as there is not any by-effect for its processing performance and mechanics properties. In addition TPB can be also used as the catalyst for ethylene polymarization into cyclooctatraene, formaldehyde polymarization, the curing agent for polycyclochlorides, and other some monomers’ polymarization etc.
| Chemical Name | TPB |
|---|---|
| Generic Name | Triphenyl Bismuth |
| CAS# | 603-33-8 |
| Purity, wt % (HPLC) | > 98.5 |
| Melting Point, ℃ | 76.0 ~78.5 |
| Acetone Insoluble, wt % | < 0.1 |
| Magnesium Content, wt % (ICP) | < 0.003 |
| Total Halide Content, wt % | < 0.05 |
